What Is the Partitioning Tax? Tiles, Seams, and Reruns

The partitioning tax is the cost an analyst pays when spatial data outgrows one machine. The workflow gets split into tiles, often one per county. The analyst then writes a loop: process each tile, fix errors at tile edges, stitch the outputs, and rerun when a parameter changes.

Wherobots named the pattern in its Wherobots for QGIS announcement. QGIS is a desktop application for geographic information system (GIS) work.

Key takeaways

• The partitioning tax has three costs: engineering time, edge effects at tile seams, and reruns of every tile.
• Tile seams create edge effects: errors near a boundary, where part of a feature's neighborhood is missing. A per-row filter or count has none. Edge effects hit anything that looks past a feature's own location: joins, nearest-neighbor queries, buffers, focal raster operations, and spatial statistics.

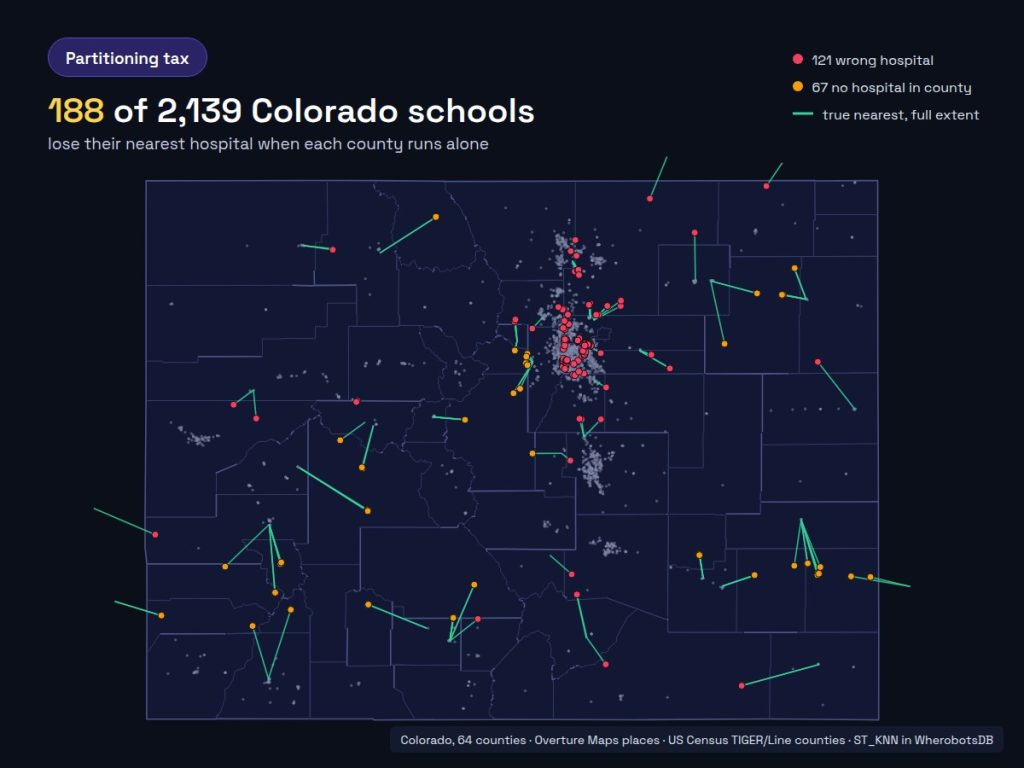

• In Colorado, a per-county loop gave 188 of 2,139 schools the wrong nearest hospital or none. One ST_KNN (k-nearest-neighbor) query over the full extent found the true nearest hospital for every school.
• An overlap buffer, or halo, extends each tile past its edge. A 50 km halo removed every seam error, and each hospital was copied 8.4 times on average.
• Inside the engine, WherobotsDB splits vector and raster data by location, indexes each part, copies features that cross an edge, and removes duplicates.

The three costs of the partitioning tax

• Engineering time. Someone writes and maintains the loop: the tile grid, the per-tile job, the merge step, and the bookkeeping that tracks which tiles finished.
• Correctness at the seams. Features that sit on a tile edge, or whose neighbors sit across it, come out dropped, duplicated, or wrong. These are edge effects, and they are silent: every tile succeeds, and the output has the right shape.
• Reruns. A new buffer distance, a new search radius, or a new input layer means running every tile again and re-tuning the seam handling.

A query that handles each row on its own, such as a filter, a count, or an aggregate by region, tiles cleanly: each row lands in one tile. The tax appears when an answer needs data from across a tile edge. That data is usually a second dataset. For focal raster operations, which compute each cell from its neighbors, it is the neighboring cells. A join needs both sides of each matching pair in one tile, and pairs can span the edge. Apache Sedona's single-node SpatialBench results record the same split on one machine. DuckDB and SedonaDB "achieve similar low-latency performance" on spatial filters at scale factors 1 and 10, the benchmark's data sizes. On complex joins, DuckDB "encounters scaling issues in certain cases," and DuckDB and GeoPandas "currently lack built-in KNN join support."

Edge effects at tile seams

An edge effect, also called a boundary effect, is the bias that appears near the edge of a dataset. A feature near the boundary has part of its neighborhood outside the data. Results computed from that neighborhood come out wrong: nearest neighbors too far, counts too low, focal windows missing cells. A tile loop adds a boundary at every tile edge, so every seam error in this article is an edge effect.

Statisticians developed the standard corrections in point-pattern analysis, the study of how points are arranged in space:

• Nearest-neighbor distances. Philip Clark and Francis Evans's nearest-neighbor index (Ecology, 1954) compares observed nearest-neighbor distances with those of a random pattern. Near the boundary, a point's true nearest neighbor can lie outside the study area, so distances run long.
• Weighting. Brian Ripley's K function appears in Modelling spatial patterns (Journal of the Royal Statistical Society, Series B, 1977). It weights each pair of points by the inverse of the share of its circle's circumference inside the study area. A pair whose circle is half outside counts twice.
• Buffer zones and wrapping. Daniel Griffith and Carl Amrhein reviewed the traditional options in an evaluation of correction techniques for boundary effects (Geographical Analysis, 1983). One is to ignore the effect. Another maps the study area onto a torus (a doughnut shape) so opposite edges touch. Others add an empirical (real data) or artificial buffer zone, extrapolate into it, or apply a correction factor.

The halo in a tile loop is the empirical buffer zone. Each tile reads real data past its edge and reports only the features inside. The halo must be as wide as the farthest interaction. For nearest-neighbor search, that width grows as the data gets sparser. One query over the full extent has no tile edges, so only the data's true boundary remains, such as a state line. The walkthrough covers that boundary by reading hospitals in neighboring states.

How a tile loop breaks

Waldo Tobler's first law of geography (Economic Geography, 1970) holds that near things are more related than distant things. A tile edge separates features that sit close together.

Partitioning tax examples

Spatial joins and point in polygon

A spatial join matches rows by location. If polygons are assigned to tiles with ST_Intersects, a polygon that crosses the edge lands in two tiles and is counted twice. If only features entirely inside a tile are kept, it lands in neither. Roads, rivers, parcels, and building footprints often cross edges.

Distance and nearest-neighbor queries

A k-nearest-neighbor (KNN) query returns the closest features to each row. Inside a tile, the search covers only that tile's candidates. So a school near a county line gets the nearest hospital in its own county, even when a closer one sits across the line. A school in a county with no hospital gets no answer. Distance joins such as ST_DWithin fail the same way across the edge.

Buffers, dissolves, and aggregations

A buffer drawn in one tile stops at the tile edge unless the neighbor's features are present. A dissolve that merges touching polygons leaves a seam line wherever the merged shape crossed tiles. Aggregations use the tiles as zones. A count per county or per grid cell changes with where the boundaries fall. This is the modifiable areal unit problem. Stan Openshaw described it in The Modifiable Areal Unit Problem (CATMOG 38, 1984), and A. Stewart Fotheringham and David Wong showed that it makes multivariate statistical results unpredictable (Environment and Planning A, 1991). H3 cells give every zone the same shape. Counts still shift with cell size and grid placement, so H3 reduces the problem without removing it.

Focal raster operations

Focal operations such as slope, aspect, hillshade, and smoothing filters compute each cell from a window of its neighbors. Berthold Horn's slope and shading estimates use a 3 by 3 window (Hill shading and the reflectance map, Proceedings of the IEEE, 1981). The last row and column of a tile have missing neighbors. A tiled raster needs halo cells from adjacent tiles. The digital elevation model walkthrough adds them as a one-cell border.

The usual fixes and what each one costs

Overlap buffers, or halos. This is the buffer-zone correction above. Each tile reads data within a set distance past its edge. In raster work, the extra cells are called halo or ghost cells.

Reference-point duplicate avoidance. A halo puts features in more than one tile, so results repeat. Jens-Peter Dittrich and Bernhard Seeger gave the standard rule in Data redundancy and duplicate detection in spatial join processing (ICDE 2000). A bounding box is the smallest rectangle around a feature. The rule reports a pair only in the tile that contains a fixed corner of the intersection of the two bounding boxes. Each pair has one such corner, so each pair is reported once.

Deduplication. Without a reference-point rule, a final DISTINCT or GROUP BY on feature IDs removes copies. That needs a stable ID on every feature and a pass that regroups the full output by ID.

How distributed spatial engines remove the tax

A distributed spatial engine builds the steps of a careful tile loop into its query plan.

• Spatial partitioning. The engine samples the data and builds partitions from it: a uniform grid, a quadtree (Finkel and Bentley, 1974), or a KDB-tree (Robinson, 1981), which splits at the median. WherobotsDB uses a KDB-tree for joins by default (sedona.join.gridtype = kdbtree in the WherobotsDB parameters).
• Partition-level indexes. Each partition gets an R-tree (Guttman, 1984) or quadtree index. The engine finds candidate pairs by looking them up in the index.
• Replication with duplicate elimination. A geometry that crosses a partition edge is copied to each partition it touches. Duplicate results are removed before output, so the engine handles its own partition edges. Jia Yu, Zongsi Zhang, and Mohamed Sarwat describe these partitioners and per-partition indexes in Spatial data management in Apache Spark: the GeoSpark perspective and beyond (GeoInformatica, 2019).
• Broadcast joins. When one side is small, such as 64 county polygons, it is copied, with an index, to every worker machine.

In WherobotsDB, a cloud spatial engine for vector and raster data, EXPLAIN FORMATTED prints which of these the plan uses. The spatial join guide lists plans with BroadcastIndexJoin, RangeJoin, DistanceJoin, and BroadcastQuerySideKNNJoin. The same planning applies to raster tiles joined with RS_Intersects. Wherobots runtimes range from General Purpose Micro to 4X-Large, plus Memory Optimized sizes; a larger extent takes a larger runtime and the same query.

The partitioning tax and AI coding assistants

The code AI coding assistants write comes from patterns in their training data (text, documents, databases, and the internet). In that material, the common way to scale a spatial job on one machine is the tile loop. A generated loop carries the seam errors above unless it adds an overlap buffer and deduplication. Against an engine that handles the extent, the same request is one SQL statement. The Wherobots MCP server runs it in Wherobots, and the QGIS plugin loads the result as a map layer. MCP, the Model Context Protocol, is a standard way for AI assistants to call outside tools.

Measuring the partitioning tax with Wherobots

This walkthrough simulates a county tile loop in SQL on Colorado and checks it against the full-extent answer. The queries read three Apache Iceberg tables from Wherobots Open Data in the Havasu catalog:

Source	Format	What the queries read
Overture Maps places	Iceberg table of points	2,139 Colorado schools (elementary, middle, and high school categories) and 932 hospitals in a box one degree wider than the state, 794 of them in Colorado
Overture buildings	Iceberg table of footprint polygons	133,094 building footprints in a box across southeast Denver
US Census TIGER/Line counties	Iceberg table of county polygons	The 64 Colorado county polygons

One Wherobots SQL session ran all three queries, each in 15.8 to 21.8 seconds.

Nearest hospital by simulated tile loop and by one query

A per-row count tiles cleanly. This query counts schools county by county, with the same point-in-polygon assignment as the main query. The counts add up to the statewide total:

-- One dataset, tiled by county: do the per-county counts add up?
WITH counties AS (
  SELECT GEOID AS county, geometry
  FROM wherobots_open_data.us_census.tiger_county
  WHERE STATEFP = '08'
),
schools AS (
  SELECT p.id, c.county
  FROM wherobots_open_data.overture_maps_foundation.places_place p
  JOIN counties c ON ST_Intersects(c.geometry, p.geometry)
  WHERE p.taxonomy.primary IN ('elementary_school', 'middle_school', 'high_school')
    AND p.bbox.xmin BETWEEN -109.1 AND -102.0 AND p.bbox.ymin BETWEEN 36.9 AND 41.1
),
per_county AS (SELECT county, COUNT(*) AS n FROM schools GROUP BY county)
SELECT (SELECT SUM(n) FROM per_county) AS sum_of_county_counts,
       (SELECT COUNT(DISTINCT id) FROM schools) AS distinct_schools,
       (SELECT COUNT(*) FROM per_county) AS counties_with_schools

The 62 county counts sum to 2,139, the number of distinct schools. The tax appears when a second dataset joins.

The question: which hospital is nearest to each school? Schools are Overture places with a primary category of elementary, middle, or high school. Hospitals are places with the category hospital, a label that includes some clinics and specialty centers. The tile_loop step simulates a county tile loop with no overlap buffer: each school searches only the hospitals in its own county, assigned by point in polygon. The full_extent step is the normal way to work in Wherobots: one ST_KNN join over every hospital in a box one degree wider than the state. Both sides use a coordinate reference system in meters as the nearest-neighbor documentation recommends for exact results.

-- Nearest hospital for every Colorado school, computed two ways
-- Distances in meters in a Lambert conformal conic projection centered on Colorado
WITH counties AS (
  SELECT GEOID AS county, NAME AS county_name, geometry
  FROM wherobots_open_data.us_census.tiger_county
  WHERE STATEFP = '08'
),
schools AS (
  -- Each school gets the county it falls in (point in polygon): its tile
  SELECT p.id, p.names.primary AS school, c.county, c.county_name,
         ST_X(p.geometry) AS lon, ST_Y(p.geometry) AS lat,
         ST_Transform(p.geometry, 'EPSG:4326', '+proj=lcc +lat_1=37.5 +lat_2=40.5 +lat_0=39 +lon_0=-105.5 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs') AS geom_m
  FROM wherobots_open_data.overture_maps_foundation.places_place p
  JOIN counties c ON ST_Intersects(c.geometry, p.geometry)
  WHERE p.taxonomy.primary IN ('elementary_school', 'middle_school', 'high_school')
    AND p.bbox.xmin BETWEEN -109.1 AND -102.0 AND p.bbox.ymin BETWEEN 36.9 AND 41.1
),
hospitals AS (
  -- Hospitals in a box one degree wider than the schools; county is null outside Colorado
  SELECT p.id, p.names.primary AS hospital, c.county,
         ST_X(p.geometry) AS lon, ST_Y(p.geometry) AS lat,
         ST_Transform(p.geometry, 'EPSG:4326', '+proj=lcc +lat_1=37.5 +lat_2=40.5 +lat_0=39 +lon_0=-105.5 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs') AS geom_m
  FROM wherobots_open_data.overture_maps_foundation.places_place p
  LEFT JOIN counties c ON ST_Intersects(c.geometry, p.geometry)
  WHERE p.taxonomy.primary = 'hospital'
    AND p.bbox.xmin BETWEEN -110.1 AND -101.0 AND p.bbox.ymin BETWEEN 35.9 AND 42.1
),
tile_loop AS (
  -- Simulated tile loop: each county searches only its own hospitals, with no overlap buffer
  SELECT id, hospital_id, hospital, distance_m, h_lon, h_lat FROM (
    SELECT s.id, h.id AS hospital_id, h.hospital, h.lon AS h_lon, h.lat AS h_lat,
           ST_Distance(s.geom_m, h.geom_m) AS distance_m,
           ROW_NUMBER() OVER (PARTITION BY s.id ORDER BY ST_Distance(s.geom_m, h.geom_m), h.id) AS rn
    FROM schools s JOIN hospitals h ON s.county = h.county
  ) WHERE rn = 1
),
full_extent AS (
  -- One pass over the full extent: k-nearest-neighbor join
  SELECT s.id, h.id AS hospital_id, h.hospital, h.county AS hospital_county,
         h.lon AS h_lon, h.lat AS h_lat, ST_Distance(s.geom_m, h.geom_m) AS distance_m
  FROM schools s JOIN hospitals h ON ST_KNN(s.geom_m, h.geom_m, 1, false)
),
cmp AS (
  SELECT s.id, s.school, s.county, s.county_name, s.lon, s.lat,
         f.hospital AS full_hospital, f.h_lon AS full_lon, f.h_lat AS full_lat,
         f.distance_m AS full_m, f.hospital_county,
         t.hospital AS tile_hospital, t.h_lon AS tile_lon, t.h_lat AS tile_lat, t.distance_m AS tile_m,
         CASE WHEN t.id IS NULL THEN 'no_hospital_in_county'
              WHEN t.distance_m > f.distance_m + 1 THEN 'wrong_hospital'
              ELSE 'same' END AS outcome
  FROM schools s
  JOIN full_extent f ON s.id = f.id
  LEFT JOIN tile_loop t ON s.id = t.id
)
SELECT *,
  COUNT(*) OVER () AS schools,
  SUM(CASE WHEN outcome = 'no_hospital_in_county' THEN 1 ELSE 0 END) OVER () AS n_dropped,
  SUM(CASE WHEN outcome = 'wrong_hospital' THEN 1 ELSE 0 END) OVER () AS n_wrong,
  SUM(CASE WHEN hospital_county IS NULL THEN 1 ELSE 0 END) OVER () AS n_nearest_out_of_state,
  SUM(CASE WHEN hospital_county IS NOT NULL AND hospital_county <> county THEN 1 ELSE 0 END) OVER () AS n_nearest_other_county,
  ROUND(AVG(CASE WHEN outcome = 'wrong_hospital' THEN tile_m - full_m END) OVER ()) AS mean_extra_m,
  ROUND(MAX(CASE WHEN outcome = 'wrong_hospital' THEN tile_m - full_m END) OVER ()) AS max_extra_m,
  ROUND(AVG(full_m) OVER ()) AS mean_full_m,
  SIZE(COLLECT_SET(county) OVER ()) AS counties_with_schools
FROM cmp
ORDER BY outcome, tile_m - full_m DESC

The query ran in 16.1 seconds and compared 2,139 schools in 62 counties. The per-county run gave 121 schools a farther hospital than the true nearest. It gave 67 schools no hospital at all, because their county has no hospital record. In total, 188 schools, 8.8%, got a wrong answer or none. For them, the true nearest hospital sits in another Colorado county for 181 and in another state for 7. Across the wrong answers the per-county hospital is 5,346 meters farther on average. The worst case is Prairie High School in Weld County. The per-county run returned a Weld County hospital 78.6 km away. The true nearest, Fort Morgan Community Hospital Association in Morgan County, is 39.4 km away, a 39,168-meter error.

The halo fix and its cost

The standard repair grows each county tile by a halo, so each school searches the hospitals in its county's grown tile. This query tries five widths at once and counts the errors left and the rows copied.

-- The usual fix: give every county tile an overlap buffer (halo) and count what it costs
WITH halos AS (
  SELECT * FROM VALUES (0), (5000), (10000), (25000), (50000) AS t(halo_m)
),
counties AS (
  SELECT GEOID AS county, geometry,
         ST_Transform(geometry, 'EPSG:4326', '+proj=lcc +lat_1=37.5 +lat_2=40.5 +lat_0=39 +lon_0=-105.5 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs') AS geom_m
  FROM wherobots_open_data.us_census.tiger_county
  WHERE STATEFP = '08'
),
tiles AS (
  -- One tile per county and halo width: the county polygon grown by halo_m meters
  SELECT /*+ BROADCAST(h) */ c.county, h.halo_m,
         CASE WHEN h.halo_m = 0 THEN c.geom_m ELSE ST_Buffer(c.geom_m, h.halo_m) END AS tile_m
  FROM counties c CROSS JOIN halos h
),
schools AS (
  SELECT p.id, c.county,
         ST_Transform(p.geometry, 'EPSG:4326', '+proj=lcc +lat_1=37.5 +lat_2=40.5 +lat_0=39 +lon_0=-105.5 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs') AS geom_m
  FROM wherobots_open_data.overture_maps_foundation.places_place p
  JOIN counties c ON ST_Intersects(c.geometry, p.geometry)
  WHERE p.taxonomy.primary IN ('elementary_school', 'middle_school', 'high_school')
    AND p.bbox.xmin BETWEEN -109.1 AND -102.0 AND p.bbox.ymin BETWEEN 36.9 AND 41.1
),
hospitals AS (
  SELECT p.id, ST_Transform(p.geometry, 'EPSG:4326', '+proj=lcc +lat_1=37.5 +lat_2=40.5 +lat_0=39 +lon_0=-105.5 +x_0=0 +y_0=0 +datum=NAD83 +units=m +no_defs') AS geom_m
  FROM wherobots_open_data.overture_maps_foundation.places_place p
  WHERE p.taxonomy.primary = 'hospital'
    AND p.bbox.xmin BETWEEN -110.1 AND -101.0 AND p.bbox.ymin BETWEEN 35.9 AND 42.1
),
tile_hospitals AS (
  -- Every hospital is copied into each tile it falls in
  SELECT t.county, t.halo_m, h.id, h.geom_m
  FROM tiles t JOIN hospitals h ON ST_Intersects(t.tile_m, h.geom_m)
),
tile_schools AS (
  -- What a loop reading every school in its grown tile would see; copies past the first are repeats to drop.
  -- (best below keeps each school in its home county, so it does not use these rows.)
  SELECT t.county, t.halo_m, s.id
  FROM tiles t JOIN schools s ON ST_Intersects(t.tile_m, s.geom_m)
),
best AS (
  -- Each school searches the hospitals of its own county's tile
  SELECT s.id, th.halo_m, MIN(ST_Distance(s.geom_m, th.geom_m)) AS tile_m
  FROM schools s JOIN tile_hospitals th ON s.county = th.county
  GROUP BY s.id, th.halo_m
),
truth AS (
  SELECT s.id, ST_Distance(s.geom_m, h.geom_m) AS full_m
  FROM schools s JOIN hospitals h ON ST_KNN(s.geom_m, h.geom_m, 1, false)
),
scored AS (
  SELECT sh.halo_m,
         COUNT(*) AS schools,
         SUM(CASE WHEN b.tile_m IS NULL THEN 1 ELSE 0 END) AS dropped,
         SUM(CASE WHEN b.tile_m > t.full_m + 1 THEN 1 ELSE 0 END) AS wrong,
         ROUND(MAX(b.tile_m - t.full_m)) AS max_extra_m
  FROM (SELECT /*+ BROADCAST(h) */ s.id, h.halo_m FROM schools s CROSS JOIN halos h) sh
  JOIN truth t ON sh.id = t.id
  LEFT JOIN best b ON sh.id = b.id AND sh.halo_m = b.halo_m
  GROUP BY sh.halo_m
),
hosp AS (
  SELECT halo_m, COUNT(*) AS hospital_rows, COUNT(DISTINCT id) AS hospitals_in_tiles
  FROM tile_hospitals GROUP BY halo_m
),
sch AS (
  SELECT halo_m, COUNT(*) AS school_rows, COUNT(*) - COUNT(DISTINCT id) AS school_duplicates
  FROM tile_schools GROUP BY halo_m
)
SELECT r.halo_m, r.schools, r.wrong, r.dropped, r.max_extra_m,
       h.hospitals_in_tiles, h.hospital_rows, s.school_rows, s.school_duplicates
FROM scored r JOIN hosp h ON r.halo_m = h.halo_m JOIN sch s ON r.halo_m = s.halo_m
ORDER BY r.halo_m

Halo	Wrong hospital	No hospital	Hospitals in tiles	Hospital rows	School rows	School duplicates
0 km	121	67	794	794	2,139	0
5 km	25	52	794	1,390	3,444	1,305
10 km	27	34	794	1,913	4,876	2,737
25 km	14	4	819	3,744	9,426	7,287
50 km	0	0	867	7,301	18,245	16,106

The query ran in 21.8 seconds. The 0 km row reproduces the tile loop: 121 and 67. Wrong answers rise from 25 to 27 between 5 and 10 km, as schools with no hospital at 5 km get one that is still not the nearest. Only the 50 km halo removes every error. Its tiles reach 73 more hospitals across the state line. The 867 hospitals fill 7,301 rows, 8.4 copies each on average. A loop reading every school in its grown tile would see the 2,139 schools as 18,245 rows, 16,106 of them repeats. The right width came from comparing against the full-extent answer, which a tile loop does not have.

Features on the county line

Building footprints cross county lines. This query assigns every Overture building in a box across southeast Denver to counties two ways: by ST_Intersects on the footprint, and by the county that holds the footprint's centroid.

-- Buildings on county lines in a box across southeast Denver and Arapahoe County
WITH counties AS (
  SELECT GEOID AS county, NAME AS county_name, geometry
  FROM wherobots_open_data.us_census.tiger_county
  WHERE STATEFP = '08'
),
b AS (
  SELECT id, geometry
  FROM wherobots_open_data.overture_maps_foundation.buildings_building
  WHERE bbox.xmin BETWEEN -105.0 AND -104.88 AND bbox.ymin BETWEEN 39.64 AND 39.76
),
hits AS (
  -- Assignment by ST_Intersects: one row per building and county it touches
  SELECT b.id, c.county_name
  FROM b JOIN counties c ON ST_Intersects(c.geometry, b.geometry)
),
per AS (
  SELECT id, COUNT(*) AS n_counties, CONCAT_WS(' / ', SORT_ARRAY(COLLECT_LIST(county_name))) AS counties
  FROM hits GROUP BY id
),
cent AS (
  -- Assignment by centroid. A centroid that falls on a county line would match both counties,
  -- so production code adds a tie-break such as the lowest county GEOID.
  SELECT b.id, c.county_name
  FROM b JOIN counties c ON ST_Intersects(c.geometry, ST_Centroid(b.geometry))
),
totals AS (
  SELECT p.*,
    COUNT(*) OVER () AS buildings,
    SUM(n_counties) OVER () AS intersects_rows,
    SUM(CASE WHEN n_counties > 1 THEN 1 ELSE 0 END) OVER () AS straddling
  FROM per p
)
SELECT t.id, t.n_counties, t.counties, c.county_name AS centroid_county,
       ST_AsText(b.geometry) AS wkt,
       t.buildings, t.intersects_rows, t.straddling,
       (SELECT COUNT(*) FROM cent) AS centroid_rows
FROM totals t
JOIN b ON t.id = b.id
LEFT JOIN cent c ON t.id = c.id
WHERE t.n_counties > 1

In 15.8 seconds the query found 133,094 buildings in the box. ST_Intersects returned 133,147 building-county rows, because 53 buildings cross the line between Denver and Arapahoe County and land in both. A tile loop that keeps only buildings fully inside a tile would drop the same 53. Centroid assignment returned 133,094 rows, one per building. This is the same idea as the reference-point rule.

Reading the plan

EXPLAIN FORMATTED on the nearest-hospital query showed BroadcastIndexJoin over an R-tree SpatialIndex for every point-in-polygon step, a KNNJoin for the nearest neighbor, and no CartesianProduct, the step that compares every row with every other row. The halo query planned the tile-to-school join as a partitioned RangeJoin and the nearest neighbor as BroadcastObjectSideKNNJoin, with BroadcastNestedLoopJoin only for the five-row halo list.

Spatial systems compared on scale and raster support

System	Execution	Raster type and SQL raster functions	Vector ST_ functions	Imagery inference to vectors	Designed as
PostGIS 3.6	One PostgreSQL server; the Citus extension shards tables across nodes	Yes, PostGIS raster (161 reference entries)	309	Not documented	PostgreSQL extension in a transactional database
DuckDB spatial	In-process, one machine	Not documented	157	Not documented	In-process analytical database
GeoPandas	One Python process; dask-geopandas adds partitions	Not documented	Python API, not counted	Not documented	Python library extending pandas
QGIS	Desktop application	Yes, raster layers and Raster Calculator	Not counted	Not documented	Desktop GIS
BigQuery	Distributed, serverless	Through Earth Engine with ST_REGIONSTATS	Not counted	Not documented	Managed data platform
Snowflake	Virtual warehouses (compute clusters)	Not documented	Not counted	Not documented	Cloud data platform
WherobotsDB and RasterFlow	Distributed runtimes, Micro to 4X-Large	Yes, 107 RS_ functions	277	Yes, RasterFlow (Public Preview)	Spatial analytics engine for vector and raster

Sources: the PostGIS reference and PostgreSQL transactions; Citus; the DuckDB spatial function reference and DuckDB transactions; GeoPandas and dask-geopandas spatial partitioning; QGIS raster data; BigQuery overview and BigQuery raster data; Snowflake geospatial data types and virtual warehouses; the WherobotsDB reference, raster functions, runtimes, and RasterFlow. Counts are distinct ST_ function names in each official reference on 6 October 2026. The references are the PostGIS 3.6.4 core reference entries, the DuckDB spatial function index, and WherobotsDB reference pages. The PostGIS vector count excludes the raster, topology, and geocoder extras. "Not documented" means the product's documentation linked here describes no such capability; "not counted" means no count was made.

Of the references counted, PostGIS lists the most vector functions (309) and WherobotsDB the next most (277). DuckDB, GeoPandas, and QGIS are each bounded by one machine. BigQuery and Snowflake distribute queries over GEOGRAPHY and GEOMETRY types. WherobotsDB distributes vector and raster SQL in one engine; most stacks pick one. RasterFlow (Public Preview) builds mosaics from imagery, runs computer vision inference on them, and writes the results as vectorized outputs on the same platform.

Partitioning tax research and what changes at scale

Edge effects, from geography to databases

Database researchers met edge effects decades later, when databases split space into partitions to run joins. Jignesh Patel and David DeWitt introduced the Partition based spatial-merge join (PBSM) at SIGMOD 1996. PBSM partitions both inputs on a grid and copies shapes that cross an edge. It then joins each partition and removes duplicates. This is the tile loop with the seams handled. Dittrich and Seeger's reference point (2000) later replaced its final duplicate-removal sort.

Spatial partitioning on clusters

Ablimit Aji and colleagues built Hadoop-GIS (PVLDB 2013) on MapReduce, handling objects that cross partition boundaries during query processing. Ahmed Eldawy and Mohamed Mokbel's SpatialHadoop (ICDE 2015) added a global spatial index. Jia Yu, Jinxuan Wu, and Mohamed Sarwat brought partitioned spatial joins to Apache Spark with GeoSpark (ACM SIGSPATIAL 2015). The 2019 GeoInformatica paper added grid, R-tree, quadtree, and KDB-tree partitioners with local indexes. GeoSpark became Apache Sedona, and WherobotsDB comes from Sedona's original creators. On SpatialBench at scale factor 1000, the current WherobotsDB runs spatial queries and joins up to 2.5 times faster than the previous generation. The mean speedup is 1.9 times (March 2026).

Open problems

• Skew. KDB-tree partitions balance row counts. Cost also grows with geometry complexity, so a partition holding a dense downtown or detailed coastline runs longer. Suprio Ray and colleagues traced this processing skew to the refine step, the exact geometry test after the index lookup, in Skew-resistant parallel in-memory spatial join (SSDBM 2014).
• Large polygons. A county, a river basin, or a country crosses many partitions and is copied to each, and every refine test walks its long boundary. Thanasis Georgiadis and Nikos Mamoulis filtered with Raster Intervals (SIGMOD 2023) before the exact test.

Conclusions

1. The partitioning tax hits joins and leaves per-row operations alone. The county counts summed to the statewide total of 2,139 schools. The per-county nearest-hospital search gave 188 of those schools (8.8%) a wrong answer or none.
2. The tax's errors sit at tile seams, so test at the full extent. Every seam error in the walkthrough sat at a county line. A test inside one tile has no seam.
3. The halo fix trades seam errors for copies, and sizing it needs the full-extent answer. 5 km left 77 errors. Of the five widths tested, only 50 km removed them all, at 8.4 copies per hospital and 16,106 duplicate school rows. If you must tile, size the halo against the full-extent answer. Expect to redo it for each new radius, layer, or k.
4. Assigning each feature to one tile by a representative point removes the double counts at tile boundaries. 53 of 133,094 buildings crossed the Denver and Arapahoe County line and counted twice under ST_Intersects; centroid assignment returned one row each. Add a tie-break for points on the line.
5. WherobotsDB runs the tile-loop steps inside the engine, so the analyst writes one query and reads the plan. EXPLAIN FORMATTED reported BroadcastIndexJoin, KNNJoin, and RangeJoin with no CartesianProduct. A larger extent takes a larger runtime with the same SQL.
6. The size of the tax on other systems needs a benchmark. The systems table rests on each product's documentation. Function counts measure breadth. Only a benchmark on your own data measures speed.

Related terms

• Spatial join: the operation whose partitioning carries most of the tax
• Geospatial analysis: the methods that seam errors distort
• H3: equal-shape cells for aggregation and join pre-filters
• Digital elevation model: focal raster operations that need halo cells
• Havasu catalog: the Iceberg tables behind the walkthrough data
• Coordinate reference system: projected meters for exact distances
• Raster vs. vector data: the two data models a partitioned engine handles
• Geospatial analytics at scale: the wider set of reasons spatial work stalls at scale

Read more from Wherobots

• Wherobots for QGIS: eliminating the partitioning tax
• Scaling spatial analysis: how KNN solves the spatial density problem
• WherobotsDB is 3x faster with up to 45% better price performance
• Writing effective spatial queries in Wherobots

Run the nearest-hospital query on your own extent with a Wherobots free trial at cloud.wherobots.com.
