What is H3? Uber’s Hexagonal Spatial Index

H3 is an open-source geospatial indexing system that divides the Earth into hexagonal cells and gives each cell a 64-bit ID. The uber/h3 repository describes it as a "hexagonal hierarchical geospatial indexing system". Uber built H3 to price rides and dispatch drivers by area. Isaac Brodsky introduced it on Uber's engineering blog in June 2018. That year Uber open sourced the library under the Apache 2.0 license. The grid has 16 resolutions, from cells larger than four million square kilometers to cells under one square meter. Converting a latitude and longitude to an H3 cell turns a location into a number that databases can group, sort, and join. H3 appears across mobility, insurance, retail, and geospatial analysis. This article tests the claim that hexagons give each cell neighbors at one distance and nearly equal area, but a cell's seven children only approximately fill it. So H3 works best to narrow candidate matches and to count records per area. Records near cell edges need an exact geometry check.

Key takeaways

• Every cell has a 64-bit integer ID, usually written in hexadecimal, such as 89283082a33ffff.
• There are 16 resolutions, 0 to 15. Each hexagon has seven children at the next finer resolution, and each step shrinks the average cell area by a factor of seven.
• Every resolution has 12 pentagons, one at each vertex of an icosahedron.
• Parent and child cells nest only approximately. Rolling up one level moved 6.0% of 74,373 San Francisco places to a different cell.

How does H3 work?

The icosahedron and the Dymaxion orientation

An icosahedron is a solid with 20 triangular faces and 12 vertices. The H3 overview describes the construction. The hexagonal grid is laid on the flat faces of an icosahedron that encloses the sphere. A gnomonic projection, a projection through the center of the sphere, then maps each cell onto the sphere. That sphere has the authalic radius of the World Geodetic System 1984 (WGS 84) ellipsoid: the radius of a sphere with the same surface area as the Earth's ellipsoid. The icosahedron is fixed to the Earth in R. Buckminster Fuller's Dymaxion orientation, which places all 12 vertices in the ocean.

A sphere can't be tiled with hexagons alone, so each H3 resolution holds 12 pentagons, one centered on each icosahedron vertex. Putting the vertices at sea keeps the pentagons, and the distortion around them, away from most land data. Resolution 0 has 122 base cells, 110 hexagons and 12 pentagons, numbered 0 to 121 from north to south. Every finer cell descends from one base cell, and the cell count table gives the number of cells at resolution r as 2 + 120 × 7^r.

The aperture-7 hierarchy and approximate containment

Each finer resolution uses aperture 7. Every hexagon has seven children, a center child and six around it. Each child has one seventh of its parent's area on the icosahedron. A pentagon has six children, five hexagons and one pentagon. Seven hexagons can't tile a larger hexagon, so the H3 coordinate system rotates each resolution about 19.1° from the one before it. Resolutions alternate between two orientations, which H3 calls Class II and Class III after Fuller's terms.

The H3 indexing documentation calls the result approximate containment. In the index, every cell has one parent, and a few bitwise operations on the child's ID give the parent's ID. Geographic containment is approximate: part of each child lies outside its parent's boundary. A point indexed at resolution 9 and truncated to resolution 8 can land in a different cell than the same point indexed directly at resolution 8. Cell boundaries at a single resolution are exact, so neighbor lookups and point indexing at one resolution are unaffected.

The 64-bit H3 index

An H3 cell ID packs its path through the hierarchy into a 64-bit integer. The H3 cell index layout assigns the bits from the highest down:

Bits	Field	Value for 89283082a33ffff
1	Reserved, set to 0	0
4	Mode (1 = cell, 2 = directed edge, 4 = vertex)	1
3	Reserved, set to 0 for cells	0
4	Resolution, 0 to 15	9
7	Base cell, 0 to 121	20
45	15 digits of 3 bits, one per resolution	0 6 0 4 0 5 2 1 4, then 7 7 7 7 7 7

Bit shifts in WherobotsDB decode the right-hand column:

SELECT lower(hex(h)) AS h3_hex,
       shiftright(h, 59) & 15  AS mode,
       shiftright(h, 52) & 15  AS resolution,
       shiftright(h, 45) & 127 AS base_cell,
       concat_ws('', transform(sequence(1, 15), i -> CAST(shiftright(h, (15 - i) * 3) & 7 AS STRING))) AS digits_1_to_15
FROM (SELECT CAST(617700169994207231 AS BIGINT) AS h) t
-- 89283082a33ffff | 1 | 9 | 20 | 060405214777777

Each digit from 0 to 6 picks one of the seven children at that resolution, and unused digits are set to 7. The digits follow the central place indexing arrangement that Kevin Sahr described, published in full in Central place indexing (Cartographica, 2019). The canonical string form is the lowercase hexadecimal of the integer, so 617700169994207231 is written 89283082a33ffff. Store the ID as a 64-bit integer or a string. Casting it through a floating-point type rounds away the last digits and points to the wrong cell. Cells that share a parent share the leading bits of their IDs, so sorting on the integer keeps siblings together on disk.

H3 resolutions and cell areas

Resolution	Average hexagon area	Average edge length	Number of cells
0	4,357,449 km²	1,281 km	122
3	12,393 km²	69 km	41,162
5	253 km²	9.85 km	2,016,842
7	5.16 km²	1.41 km	98,825,162
8	0.737 km²	531 m	691,776,122
9	0.105 km²	201 m	4,842,432,842
10	0.0150 km²	76 m	33,897,029,882
12	307 m²	10.8 m	1,660,954,464,122
15	0.895 m²	0.58 m	569,707,381,193,162

Values come from the H3 resolution table, computed on a sphere with the WGS 84 authalic radius.

Area varies with a cell's position relative to the icosahedron's vertices. At resolution 9 the largest hexagon is 1.99 times the area of the smallest, and pentagons are about half the area of an average hexagon.

Why hexagons?

Three regular polygons tile the plane: triangles, squares, and hexagons. In the H3 aggregation notes, a triangle has 12 neighbors at three distances. A square has eight neighbors at two distances: four that share an edge and four that share a corner. A hexagon has six neighbors, all sharing an edge, with every neighbor center at the same distance. On a hexagonal grid, smoothing and movement behave alike in every direction, because grid distance tracks geographic distance.

Hexagons are the most compact of the three shapes. Thomas Hales proved the honeycomb conjecture in 2001: of all partitions of the plane into equal-area regions, the regular hexagonal tiling has the least perimeter. Birch, Oom, and Beecham compared rectangular and hexagonal grids in ecology (2007).

K-rings and grid distance

The H3 function gridDisk, also called a k-ring, returns every cell within k steps of a cell. For a hexagon away from a pentagon, that is 1 + 3k(k + 1) cells: 7 cells for k = 1 and 19 for k = 2. The hollow ring of cells k steps away holds 6k cells. Grid distance is the minimum number of steps between two cells, and the H3 traversal functions note that it can fail across pentagon distortion.

H3 vs S2 vs geohash vs quadkeys

	H3	S2	Geohash	Quadkey (Bing tiles)
Base shape	Icosahedron, 122 base cells	Cube, 6 faces	Longitude and latitude rectangle	Web Mercator square
Cell shape	Hexagon (plus 12 pentagons per resolution)	Quadrilateral	Rectangle in degrees	Square in Mercator
Children per cell	7 (approximate containment)	4 (exact)	32 per character (exact)	4 (exact)
Levels	16 (0 to 15)	31 (0 to 30)	Any number of characters	1 to 23
Neighbor types	One (edge)	Two (edge, corner)	Two (edge, corner)	Two (edge, corner)
ID type	64-bit integer	64-bit integer	Base-32 string	Base-4 string
Poles	Covered	Covered	Covered, cells shrink	Cut at ±85.05°

S2 projects the sphere onto the six faces of a cube. It orders cells on each face along a Hilbert curve, a path that visits every cell once. That order gives every cell from level 0 to 30 a 64-bit ID. In the H3 comparison with S2, S2 squares split into four children with no overlap, and H3 hexagons give one neighbor type at the cost of approximate containment. Geohash interleaves the bits of longitude and latitude, the Z-order idea G. M. Morton described in a 1966 IBM report, and writes the result in base 32. The H3 comparison with geohash notes that geohash cells shrink toward the poles because a degree of longitude spans less distance at high latitude. Quadkeys name the tiles of the Bing Maps tile system, a pyramid of square tiles in the Web Mercator projection. Its tiles cover less and less ground the farther they are from the equator. They stop at 85.05° north and south.

Area distortion separates them most. This WherobotsDB query returns the area of the cell that contains a point every 5° of latitude along longitude 122.42° W, the meridian through San Francisco:

WITH pts AS (
  SELECT CAST(lat AS DOUBLE) AS lat, ST_Point(-122.42, CAST(lat AS DOUBLE)) AS pt
  FROM (SELECT explode(sequence(0, 80, 5)) AS lat) s
)
SELECT lat,
       ROUND(ST_AreaSpheroid(ST_H3ToGeom(ST_H3CellIDs(pt, 7, false))[0]) / 1e6, 3)         AS h3_res7_km2,
       ROUND(ST_AreaSpheroid(ST_GeomFromGeoHash(ST_GeoHash(pt, 5))) / 1e6, 3)              AS geohash5_km2,
       ROUND(ST_AreaSpheroid(ST_BingTilePolygon(ST_BingTileAt(-122.42, lat, 14))) / 1e6, 3) AS quadkey14_km2
FROM pts
ORDER BY lat

From the equator to 80° N, the five-character geohash cell shrinks from 23.77 km² to 4.18 km². Over the same range, the zoom 14 quadkey tile shrinks from 5.94 km² to 0.18 km², 3% of its equatorial area. The H3 resolution 7 cell stays between 4.26 km² and 5.76 km² along the whole line. H3's variation follows position on the icosahedron, so it rises and falls along the line with no trend toward the pole.

H3 examples

• Surge pricing at Uber. Uber's engineering blog describes measuring supply and demand per hexagon, the use case that motivated H3.
• Hexagon mosaic maps at the U.S. Environmental Protection Agency (EPA). Carr, Olsen, and White proposed hexagon mosaic maps (1992) for national environmental monitoring.
• Urban embeddings. Woźniak and Szymański's hex2vec (2021) aggregated OpenStreetMap tags to H3 cells in six Polish cities and learned an embedding per cell for clustering neighborhoods.
• Density maps and joins. Counts of points of interest per cell give an even, comparable map. Two datasets indexed at one resolution join on the cell ID as a pre-filter for a spatial join.
• Risk scoring. Insurers aggregate hazard layers and exposure to cells for catastrophe modeling and flood risk.
• Machine learning. Cell IDs give models one spatial unit for features and labels in geospatial AI.

H3 in Wherobots

WherobotsDB and Apache Sedona run H3 in SQL:

• ST_H3CellIDs(geom, level, fullCover) returns the cells for a point, line, or polygon.
• ST_H3ToGeom(cells) returns the hexagon polygons for an array of cells.
• ST_H3KRing(cell, k, exactRing) returns the cells within k steps, or only the cells k steps away when exactRing is true.
• ST_H3CellDistance(cell1, cell2) returns the grid distance.
• ST_H3ToParent(cell, resolution) returns the parent cell.

The same dialect has functions for S2 cells, geohashes, and Bing tile quadkeys, which the grid comparison above uses. S2 is left out of the chart because ST_S2ToGeom returns each cell's latitude and longitude bounding box, which overstates its area.

The running example is Overture places in a box around San Francisco, from the Havasu catalog. The queries in this article run as WherobotsDB SQL and read these inputs:

Input	Format	Size read	What the queries read
Overture Maps places, wherobots_open_data.overture_maps_foundation.places_place	Havasu table with a geometry column	74,373 places in the San Francisco box	The point geometry of each place
Points along longitude 122.42° W	Generated in the query with sequence	17 points, every 5° from 0° to 80° N	Each point, indexed to H3, geohash and quadkey cells
Global point lattice	Generated in the query with sequence	259,200 points, every half degree	Each point, indexed to a resolution 3 cell

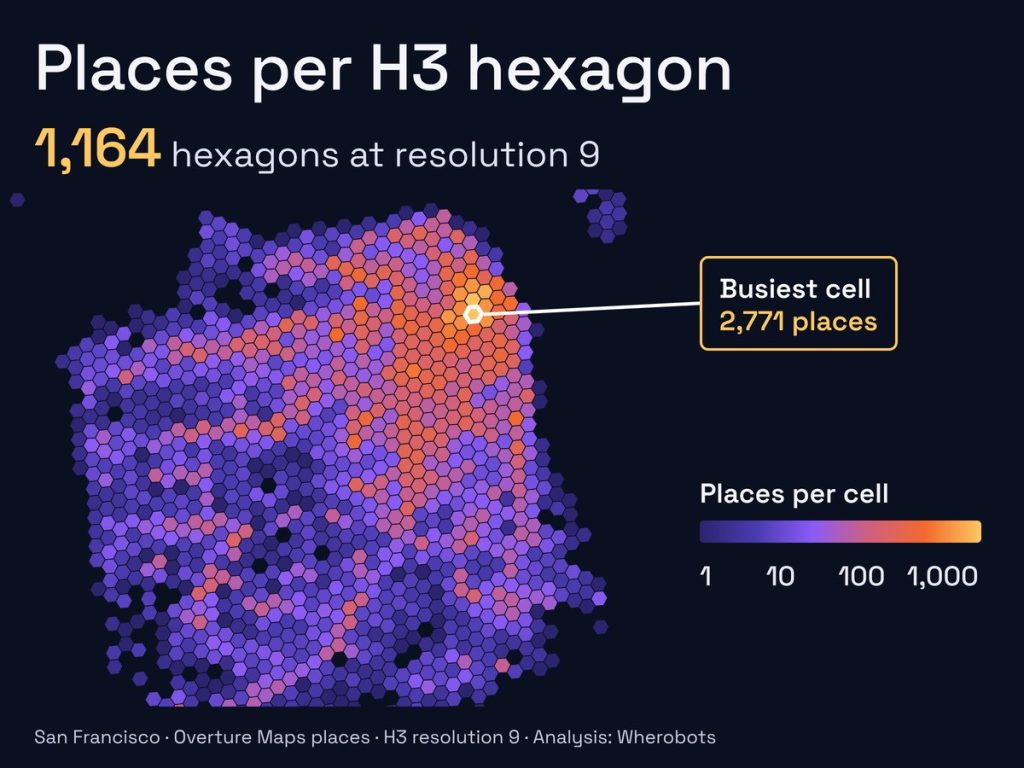

This query indexes each place at resolution 9 and counts places per cell:

SELECT CAST(h3 AS STRING) AS h3_cell, lower(hex(h3)) AS h3_index, COUNT(*) AS places
FROM (
  SELECT ST_H3CellIDs(geometry, 9, false)[0] AS h3
  FROM wherobots_open_data.overture_maps_foundation.places_place
  WHERE ST_Intersects(geometry, ST_PolygonFromEnvelope(-122.53, 37.70, -122.35, 37.82))
)
GROUP BY h3
ORDER BY places DESC
LIMIT 5

h3_cell	h3_index	places
617700169994207231	89283082a33ffff	2,771
617700169993158655	89283082a23ffff	2,602
617700169993682943	89283082a2bffff	1,847
617700170021994495	89283082bdbffff	1,281
617700169993420799	89283082a27ffff	1,225

A second query explores the busiest cell:

SELECT lower(hex(ST_H3ToParent(617700169994207231, 7))) AS parent_res7,
       size(ST_H3KRing(617700169994207231, 1, false)) AS ring_1_cells,
       size(ST_H3KRing(617700169994207231, 2, false)) AS ring_2_cells,
       size(ST_H3KRing(617700169994207231, 2, true))  AS ring_2_exact,
       ST_H3CellDistance(617700169994207231, 617700169993158655) AS grid_distance,
       ROUND(ST_AreaSpheroid(ST_H3ToGeom(array(617700169994207231))[0])) AS area_sq_m

Its resolution 7 parent is 87283082affffff. One ring holds 7 cells, two rings hold 19, and the ring of cells two steps away holds 12. The second-busiest cell is 1 step away. The hexagon covers 109,461 m² on the WGS 84 ellipsoid, 3.9% above the 105,333 m² spherical average for resolution 9.

Places per cell at resolutions 8 and 9 in San Francisco

The next query indexes every place at resolutions 7, 8, and 9. It then counts how often the truncated parent of a resolution 9 cell differs from the cell of the same place at the coarser resolution. It ran in 37 seconds.

WITH p AS (
  SELECT ST_H3CellIDs(geometry, 9, false)[0] AS h9,
         ST_H3CellIDs(geometry, 8, false)[0] AS h8,
         ST_H3CellIDs(geometry, 7, false)[0] AS h7
  FROM wherobots_open_data.overture_maps_foundation.places_place
  WHERE ST_Intersects(geometry, ST_PolygonFromEnvelope(-122.53, 37.70, -122.35, 37.82))
)
SELECT COUNT(*)           AS places,
       COUNT(DISTINCT h9) AS res9_cells,
       COUNT(DISTINCT h8) AS res8_cells,
       COUNT(DISTINCT h7) AS res7_cells,
       SUM(CASE WHEN ST_H3ToParent(h9, 8) <> h8 THEN 1 ELSE 0 END) AS parent8_mismatch,
       SUM(CASE WHEN ST_H3ToParent(h9, 7) <> h7 THEN 1 ELSE 0 END) AS parent7_mismatch
FROM p

The box holds 74,373 places in 1,164 resolution 9 cells, 201 resolution 8 cells, and 42 resolution 7 cells. For 4,455 places (6.0%), the resolution 8 parent of their resolution 9 cell is a different cell from the one they fall in at resolution 8. Truncating two levels to resolution 7 moves 4,761 places (6.4%).

A single scan returns the cells at both resolutions. Expanding a two-entry map into rows gives each place one row per resolution, so the table is read once:

WITH p AS (
  SELECT ST_H3CellIDs(geometry, 9, false)[0] AS h9,
         ST_H3CellIDs(geometry, 8, false)[0] AS h8
  FROM wherobots_open_data.overture_maps_foundation.places_place
  WHERE ST_Intersects(geometry, ST_PolygonFromEnvelope(-122.53, 37.70, -122.35, 37.82))
),
cells AS (
  SELECT res, cell, COUNT(*) AS places
  FROM p LATERAL VIEW explode(map(9, h9, 8, h8)) t AS res, cell
  GROUP BY res, cell
)
SELECT res, COUNT(*) AS cells, SUM(places) AS places, MAX(places) AS max_places,
       percentile(places, 0.5) AS median_places,
       SUM(CASE WHEN places = 1 THEN 1 ELSE 0 END) AS single_place_cells,
       ROUND(MIN(ST_AreaSpheroid(ST_H3ToGeom(array(cell))[0]))) AS min_area_m2,
       ROUND(MAX(ST_AreaSpheroid(ST_H3ToGeom(array(cell))[0]))) AS max_area_m2
FROM cells
GROUP BY res
ORDER BY res

Resolution	Cells	Busiest cell	Median per cell	Cells with one place	Cell area range
8	201	11,745	113	6	765,056 to 767,087 m²
9	1,164	2,771	13	99	109,292 to 109,586 m²

The query ran in under 5 seconds. One step finer, the busiest cell holds a quarter as many places, the median cell an eighth as many, and 99 cells hold a single place. Across the city, cell areas at one resolution differ by less than 0.3%, so local counts compare fairly.

The reassignments show in the busiest resolution 8 cell, 88283082a3fffff, downtown. This query compares the places indexed directly to it with the places in its seven children:

WITH p AS (
  SELECT ST_H3CellIDs(geometry, 9, false)[0] AS h9,
         ST_H3CellIDs(geometry, 8, false)[0] AS h8
  FROM wherobots_open_data.overture_maps_foundation.places_place
  WHERE ST_Intersects(geometry, ST_PolygonFromEnvelope(-122.53, 37.70, -122.35, 37.82))
),
flagged AS (
  SELECT h9,
         lower(hex(h8)) = '88283082a3fffff'                   AS in_res8_cell,
         lower(hex(ST_H3ToParent(h9, 8))) = '88283082a3fffff' AS parent_is_cell
  FROM p
)
SELECT SUM(CASE WHEN in_res8_cell THEN 1 ELSE 0 END)                        AS direct_res8_count,
       SUM(CASE WHEN parent_is_cell THEN 1 ELSE 0 END)                      AS children_rollup_count,
       SUM(CASE WHEN parent_is_cell AND NOT in_res8_cell THEN 1 ELSE 0 END) AS in_child_outside_parent,
       SUM(CASE WHEN in_res8_cell AND NOT parent_is_cell THEN 1 ELSE 0 END) AS in_parent_not_in_child,
       COUNT(DISTINCT CASE WHEN in_res8_cell AND NOT parent_is_cell THEN h9 END) AS foreign_res9_cells
FROM flagged
WHERE in_res8_cell OR parent_is_cell

Indexed directly, the cell holds 11,745 places. Its seven children hold 11,829. The difference comes from both edges. 326 places sit in a child but outside the parent. Another 242 sit inside the parent but in 6 resolution 9 cells that belong to neighboring parents.

For counts and maps, a 6% reassignment at the edges may be acceptable. For totals that must match where each record falls, such as exposure totals, index each record directly at every resolution the analysis reports.

Area variation across every resolution 3 cell

Every resolution 3 cell fits in one query: a lattice of points every half degree hits each cell, and ST_AreaSpheroid gives its area on the WGS 84 ellipsoid. A BROADCAST hint copies the short latitude list to every worker for the cross join. The query finished in 11 seconds.

WITH lon AS (SELECT v / 100.0 AS lon FROM (SELECT explode(sequence(-17975, 17975, 50)) AS v) a),
     lat AS (SELECT v / 100.0 AS lat FROM (SELECT explode(sequence(-8975, 8975, 50)) AS v) b),
lattice AS (SELECT /*+ BROADCAST(lat) */ ST_Point(lon, lat) AS pt FROM lon CROSS JOIN lat),
cells AS (SELECT DISTINCT ST_H3CellIDs(pt, 3, false)[0] AS cell FROM lattice),
areas AS (SELECT cell, ST_H3ToGeom(array(cell))[0] AS g FROM cells),
measured AS (
  SELECT cell, ST_NPoints(g) AS npts, ST_AreaSpheroid(g) / 1e6 AS km2,
         ROW_NUMBER() OVER (ORDER BY ST_AreaSpheroid(g)) AS rk
  FROM areas
  WHERE ST_XMax(g) - ST_XMin(g) < 180   -- drop cells split by the antimeridian or around a pole
)
SELECT (SELECT COUNT(*) FROM cells) AS cells_found, COUNT(*) AS cells_measured,
       ROUND(AVG(CASE WHEN rk <= 12 THEN km2 END), 1) AS smallest12_avg_km2,
       ROUND(MIN(CASE WHEN rk > 12 THEN km2 END), 1)  AS min_hexagon_km2,
       ROUND(MAX(km2), 1)                             AS max_hexagon_km2,
       ROUND(AVG(CASE WHEN rk > 12 THEN km2 END), 1)  AS avg_hexagon_km2,
       ROUND(MAX(km2) / MIN(CASE WHEN rk > 12 THEN km2 END), 3) AS max_min_ratio
FROM measured

The lattice yields 41,162 cells, the exact count in the H3 resolution table. After dropping 218 cells that cross the antimeridian or surround a pole, the 12 smallest of the remaining 40,944 average 6,315.5 km², the documented pentagon area. The hexagons range from 7,691.1 km² to 15,071.5 km², a ratio of 1.96, and average 12,395.4 km². The resolution table's spherical figures are 1.94 and 12,393 km², close to the ellipsoidal ones.

The Apache Iceberg spatial data post covers H3 as a sort and partition key, and the mobility solution accelerator indexes GPS points at resolution 9 for density heatmaps.

H3 research and what changes at scale

H3 is one design in a field that predates it by decades: discrete global grid systems (DGGS).

Discrete global grid systems

Kimerling, Sahr, White, and Song compared tessellations of the sphere in Comparing geometrical properties of global grids (1999), measuring how cell area, shape, and spacing vary across candidate designs. Sahr, White, and Kimerling then framed the design space in Geodesic discrete global grid systems (Cartography and Geographic Information Science, 2003), the paper the H3 documentation cites. They showed that a geodesic DGGS comes from five largely independent choices. The first two are a base polyhedron and its orientation to the Earth. The other three are a hierarchical partition of the faces, a transform from the faces to the sphere, and a way to assign points to cells. H3's choices are an icosahedron, the Dymaxion orientation, aperture 7 hexagons, a gnomonic projection, and cell centers.

The projection choice sets the area behavior. John Snyder's equal-area map projection for polyhedral globes (1992) gives every cell at a resolution the same area, and Sahr's DGGRID software builds equal-area icosahedral grids on it. H3's gnomonic projection keeps cell shapes closer to regular hexagons and accepts the twofold area range in exchange. Astronomy's HEALPix grid (Górski and colleagues, 2005) is equal-area too.

Richard Barnes revisited the orientation choice in Optimal orientations of discrete global grids and the Poles of Inaccessibility (2019). He found other orientations that also keep all 12 vertices at sea.

The Open Geospatial Consortium DGGS Abstract Specification

The Open Geospatial Consortium (OGC) standardized the concept in Topic 21, Discrete Global Grid Systems, Part 1 (OGC 20-040r3, published 2021). The International Organization for Standardization (ISO) published it in parallel as ISO 19170-1:2021. The specification defines a DGGS as a system of cell IDs tied to cell geometry, plus functions to import data, export data, and query which cells touch. It also requires cells of equal area. H3 does not meet that requirement, because its cell areas vary by a factor of about two. The OGC API, Discrete Global Grid Systems, Part 1: Core followed as a web API standard for retrieving data by zone.

Hexagonal binning and the unit of analysis

Carr, Littlefield, Nicholson, and Littlefield introduced hexagon binning for dense scatterplots in Scatterplot matrix techniques for large N (Journal of the American Statistical Association, 1987). In the H3 comparison with hexbins, a hexbin grid belongs to one map projection and has no hierarchy, while H3 cell IDs are global and portable between datasets.

Any grid is a choice of areal unit, so H3 inherits the modifiable areal unit problem. Stan Openshaw's 1984 monograph, The Modifiable Areal Unit Problem (CATMOG 38), showed that statistics change with both the size and the placement of the zones. Jelinski and Wu traced the implications for landscape ecology (1996). The San Francisco counts above show the size effect: one resolution finer, the busiest cell drops from 11,745 places to 2,771.

Open problems

• Approximate containment. Seven hexagons can't fill a larger hexagon, so every rollup from child to parent reassigns some records, 6.0% at one level in San Francisco. Sahr's central place indexing work and mixed-aperture grids explore other trade-offs between nesting and cell shape.
• Area variation. Kmoch, Vasilyev, Virro, and Uuemaa measured cell area and shape across five open-source DGGS libraries, including H3 and S2. They reported the results in Area and shape distortions in open-source discrete global grid systems (Big Earth Data, 2022). Unequal areas bias any statistic that treats cells as equal units.
• Interoperability. Hojati, Robertson, Roberts, and Chaudhuri list open questions in GIScience research challenges for realizing discrete global grid systems as a Digital Earth (2022).

What scale changes

At billions of rows, the cell ID becomes a partitioning key. Datasets indexed to one resolution join on equal 64-bit cell IDs, which a cluster hashes and distributes without reading geometry. Jia Yu, Jinxuan Wu, and Mohamed Sarwat built spatial partitioning and indexing into Apache Spark with GeoSpark (ACM SIGSPATIAL, 2015). Yu, Zhang, and Sarwat wrote Spatial data management in Apache Spark: the GeoSpark perspective and beyond (GeoInformatica, 2019). It compared four ways to split data into partitions by location: uniform grid, R-tree, quadtree, and KDB-tree. GeoSpark became Apache Sedona, the engine behind the ST_H3 functions in this article.

Conclusions

These queries show what H3 is: near-equal hexagons with one neighbor type and resolutions that nest only approximately.

1. H3 is a pre-filter, and exact geometry finishes the join. Join on cell ID to narrow the candidates. Then confirm matches with ST_Intersects on the original geometries. Index the polygon side with fullCover = true so points near the edge reach that check.
2. An H3 resolution should match the input and the decision. GPS points accurate to about 10 meters can't support resolution 13. The San Francisco examples use resolutions 7 to 9. Count records per cell at two resolutions first. In San Francisco the median cell holds 113 places at resolution 8 and 13 at resolution 9.
3. H3 rollups trade reconciling totals against placing each record in its true cell. Rolling up with ST_H3ToParent keeps children summing to their parent. It also moved 6.0% of 74,373 places to a different cell one level up, and 6.4% two levels up. Direct indexing at each resolution puts each place in the cell that contains it, and totals then differ: 11,745 places in one resolution 8 cell, 11,829 in its children.
4. H3 cell areas are nearly equal only within a region. Across San Francisco they differ by less than 0.3%. Worldwide, resolution 3 hexagons range from 7,691 km² to 15,072 km² and pentagons are about half the average, so weight global statistics by area.
5. H3 is the grid to pick for uniform neighbors. H3 gives one neighbor type and cell area with no trend toward the pole, where a zoom 14 quadkey tile shrinks to 3% of its equatorial area by 80° N. Where exact nesting or equal area is a requirement, use S2 or an equal-area DGGS, since H3 meets neither.

Related terms

• Geospatial database: geometry types, a spatial index and spatial SQL in one system
• Geospatial data: the vector and raster data H3 indexes
• Spatial join: matching datasets by location, often pre-filtered with H3
• Geospatial analysis: methods that use grids, joins, and statistics
• Coordinate reference system: the coordinates H3 converts into cells
• POI data: places often aggregated to H3 cells
• Building footprint: polygons often summarized per H3 cell
• Raster vs vector data: H3 cells as a regular grid for vector data

Read more from Wherobots

• Mobility solution accelerator: GPS trajectory processing
• Exploring Global Fishing Watch public data with SedonaDB and GeoParquet
• How to score every building in a state for catastrophe risk
• Spatial data in Apache Iceberg: optimizations and management that matter

Index and aggregate billions of points to H3 cells with a Wherobots free trial at cloud.wherobots.com.
